Coil burner disassembled

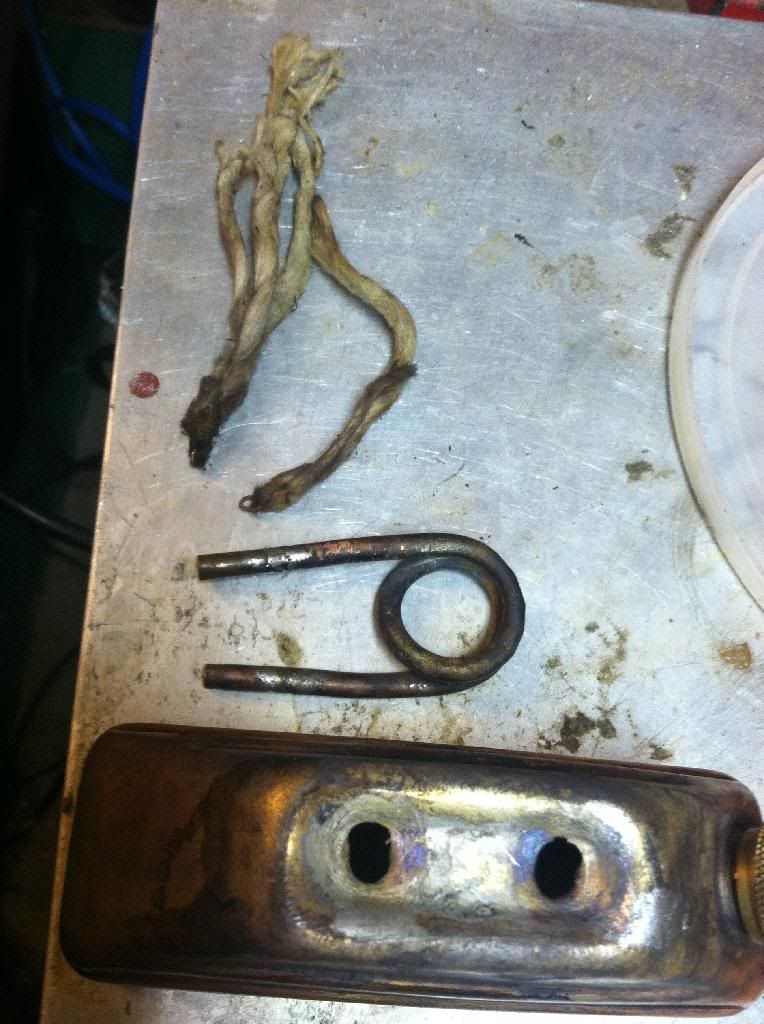

I recently acquired a Taykit stove from fleabay. After much fiddling trying to get it to burn like my other two Taykit stoves, I decided there was a possible leak in the system. In the interest of Stovie science, I decided to disassemble the burner coil. I heated the base of the coils with a propane torch until the solder liquified and the coil tubing slid right out. Here is a pic of the disassembled coil. I did lose some of the wicking strands on one side in the process. The wicks are folded in half with a small piece of wire twisted around the fold making it easier to insert in the tubes. They only go about a 1/2" into the tube. Once I locate some cotton mop strands, I will reassemble and solder into place.


"Many of lifes failures are people who did not realize how close they were to success when they gave up".....Thomas Edison
"Live Life....Love Life....Ask More !
"Live Life....Love Life....Ask More !
Re: Coil burner disassembled
They only go about a 1/2" into the tube.
Stove science pays off.....
Thank you Stove Scientist

No one can have too many Takits stoves/burner.....errr, maybe oops56(mr. stove) has too many

http://www.woodgaz-stove.com/
Re: Coil burner disassembled
Hey Ridgerunner, did you ever continue on with this project, find the mop and then re-thread the coil?
http://www.woodgaz-stove.com/
- Ridgerunner
- Posts: 5266
- Joined: Wed Sep 19, 2007 9:08 pm
- Location: SW, Ohio
- Contact:
Re: Coil burner disassembled
To be truthful, I don't know the location of this stove as it was packed away during construction of the addition

"Many of lifes failures are people who did not realize how close they were to success when they gave up".....Thomas Edison
"Live Life....Love Life....Ask More !
"Live Life....Love Life....Ask More !
Re: Coil burner disassembled
Fully understand about too much stuff
When you find it, put towards the Harley Fund


http://www.woodgaz-stove.com/
